Drilling Holes in Steel I Beams
Drilling Holes in Steel I Beams
Payment Type: L/C,T/T
Incoterm: FOB,CIF
Delivery Time: 30 Days
Send Inquiry
Product Description
Drilling Holes in Steel I Beams
Basic Info
Model No.: BD
Application: Metal
Numerical Control: CNC/MNC
Processing Precision: ±0.05mm
Certification: GS, SGS, CE, RoHS, ISO 9001
Condition: New
Function: H Beam Drilling
Max. H Beam Size: 1250*600
Drilling Hole: 12-40
No. Of Drilling Spindle: 3pcs
Feeding Speed: 0-8m/min
Spindle Speed: 0-4000r/min
Additional Info
Packaging: Wooden Pallet
Productivity: 20set
Brand: SF
Transportation: Ocean
Place of Origin: China
Certificate: ISO9001
Port: Qingdao Port
Product Description

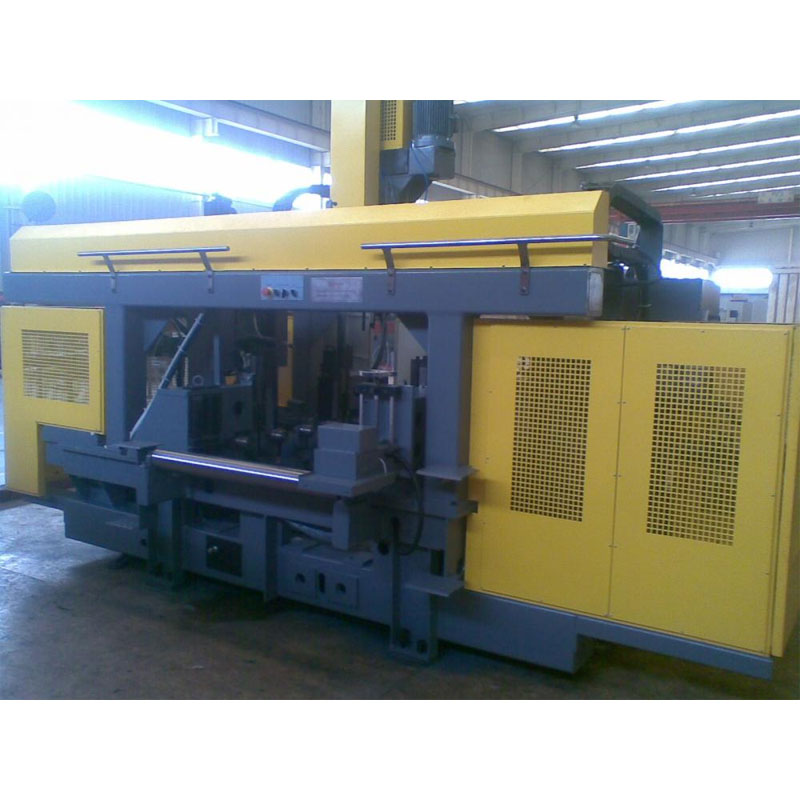

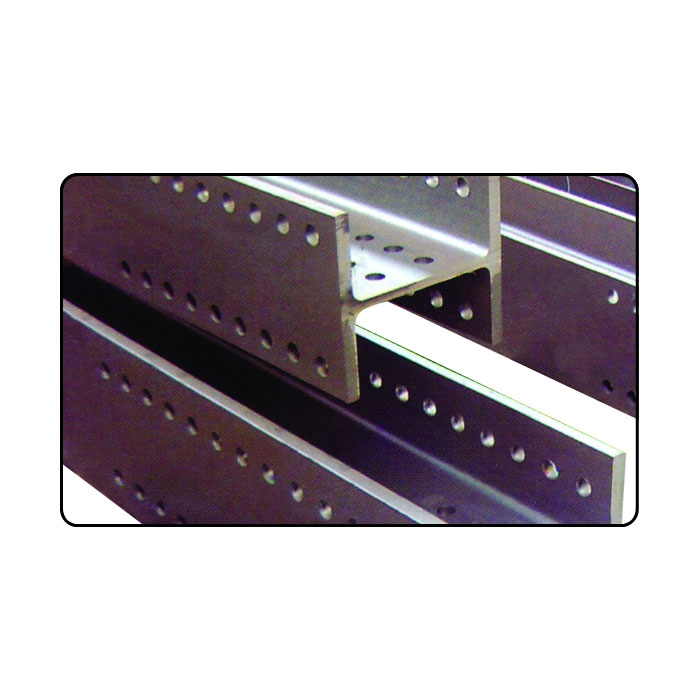

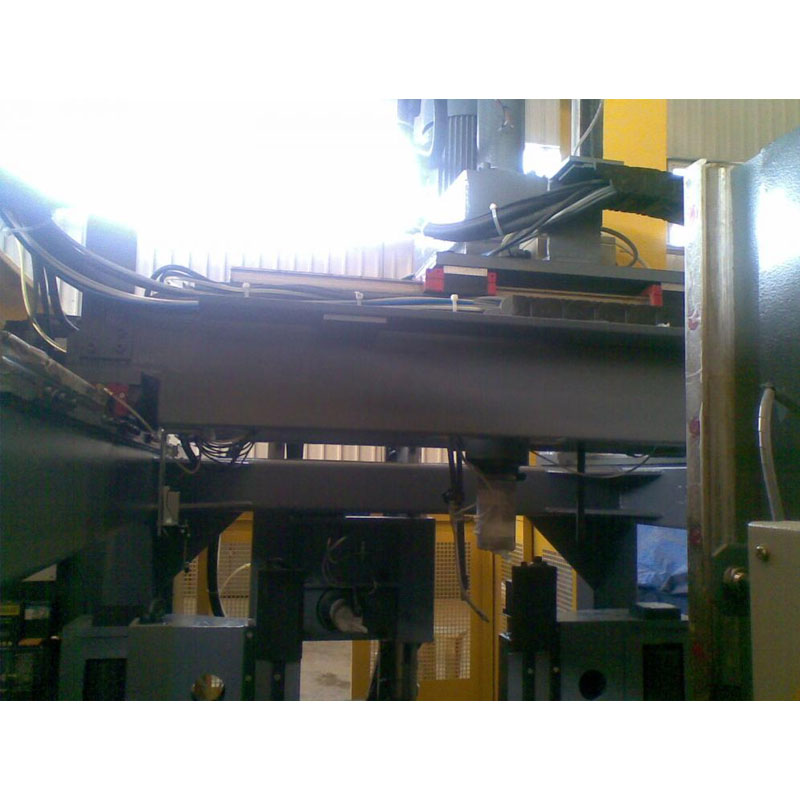

Beam Drill Lines is suitable for drilling three sides of H-beam and U-channel in steel structure industry.
Feature
1.Three power heads can work simultaneously or independently high-speed drilling,chamfering,tapping and other
processes.

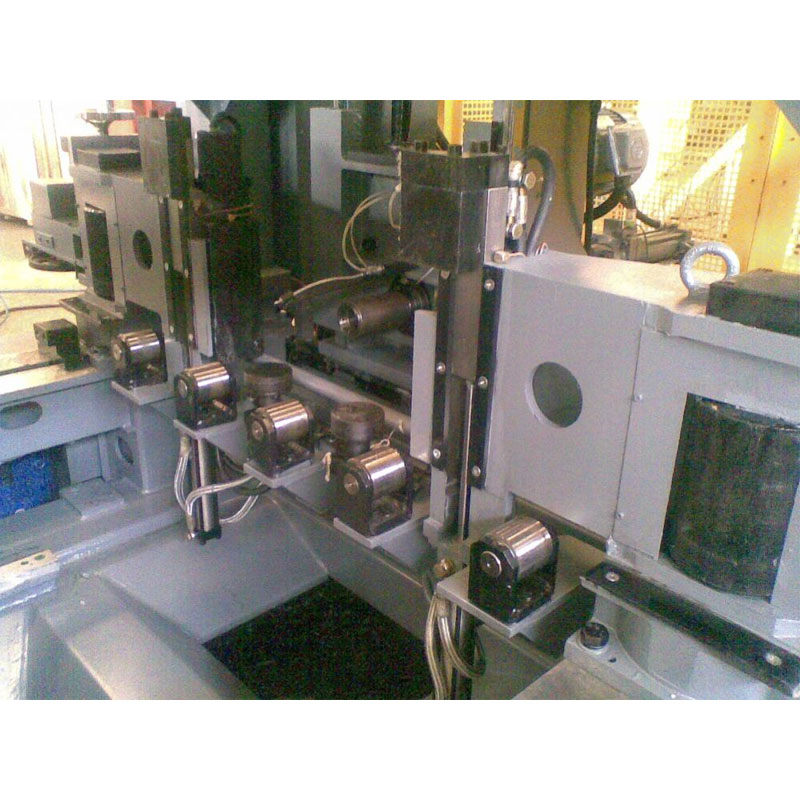

2.Both vertical and horizontal with hydraulic clamping device.
3.Three power heads with an automatic tool changer.
4.Three axes can achieve high speed lettering lining.
Technology parameter
| Drill Range | H*W | Max(mm) | 1250×600 |
| Min(mm) | 150×75 | ||
| Thickness(mm) | ≤80 | ||
| Max Length(m) | 15(can be customized) | ||
| Min length(m) | Auto mode 3000 | ||
| Manual mode 690-3000 | |||
| Axis | Drill dia. | Middle axis (mm) | φ12~φ33.5 |
| Side axis (mm) | φ12~φ26.5 | ||
| Qty. of drill axis(pcs) | 3 pcs | ||
| Drill speed (r/min) | 180~560(Frequency) | ||
| Taper of axis | Mohs 4 | ||
| Feeding speed (mm/min) | 0-200(Feeding car) 0-150(Feeding Roller) | ||
| Axial stroke | Middle axis(mm) | 240 | |
| Side axis (mm) | 140 | ||
| Move distance | In workpiece length direc ion (mm) | 520 | |
| Side axis in up and down direction (mm) | 35-570 | ||
| Middle axis in workpiece width direction (mm) | 45-1160 | ||
| Cooling | Cooling | Compressed air + cutting fluid | |
| Air pressure(mpa) | ≥0.5 | ||
| Accuracy | Error of adjacent holes in hole group (mm) | ±0.5 | |
| Ac uracy of adjacent feeding distance within(mm) |
1 |
||
| Motor power | Spindle axis motor(KW) | 4x3 | |
| Middle axis X servo motor(KW) | 0.85 | ||
| Middle axis Z servo motor(KW) | 1.3 | ||
| Side axis X servo motor(KW) | 0.85x2 | ||
| Side axis Y servo motor(KW) | 1.3x2 | ||
| Dragging Plate Motor(KW) | 0.85 | ||
| Dimension(L×W×H)(m) | 4.8×2.4×3.3 | ||
| Weight(㎏) | About 7500 | ||
MAIN COMPONENT LIST
| No. | Item | Model | Qty. | Brand |
| 1 | Linear guide | HGH35 | 6 | HIWIN |
| 2 | Ball screw | R32-5T3 | 3 | HIWIN |
| 3 | Pump and motor group | 3KW | 1 | YUKEN |
| 4 | Servo motor | 6 | Japan Yaskawa | |
| 5 | Upper computer | Lenovo | ||
| 6 | Sensor | PS | AUTONICS | |
| 7 | Flow control valve | QC-06/1 | 3 | YUKEN |
| 8 | Magnetic valve | WE6EA50/AG20 | 5 | AUTONICS |
| 9 | one-way valve | Z2S10A2 | 2 | AUTONICS |
| 11 | Diffuse switch | QS18VP6DB | 2 | Schneider |
OPTION FOR FEEDING SYSTEM
1. CNC feeding car:
1.1 Automatic stop and alarm function, improve the reliability and safety of the workpiece conveying process
1.2 Simple structure, easy to install
1.3 Auto length
2. Feeding roller:
1.1 Low cost
1.2 Strong continuous productivity
1.3 Auto length
