Metal Coil Slitting Machine

Product Description

Metal Coil Slitting Machine

Basic Info

Model No.: HF

Application: Metal

Processing Precision: ±0.05mm

Certification: GS, SGS, CE, RoHS, ISO 9001

Condition: New

Function: Steel Coil Slitting

Additional Info

Packaging: Wooden Package

Productivity: 30set

Brand: SF

Transportation: Ocean

Place of Origin: China

Certificate: ISO9001

Port: Qingdao Port

Product Description

Ⅰ. Description

1．1 Function and process

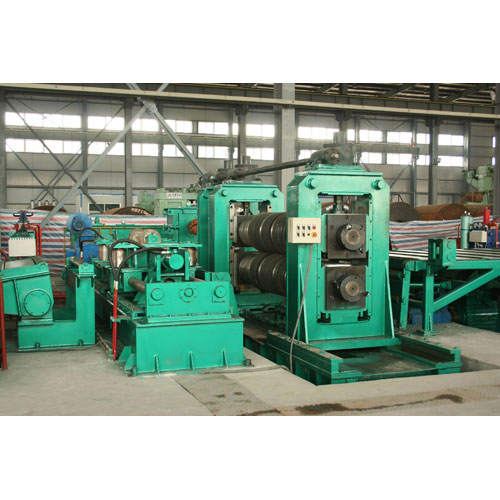

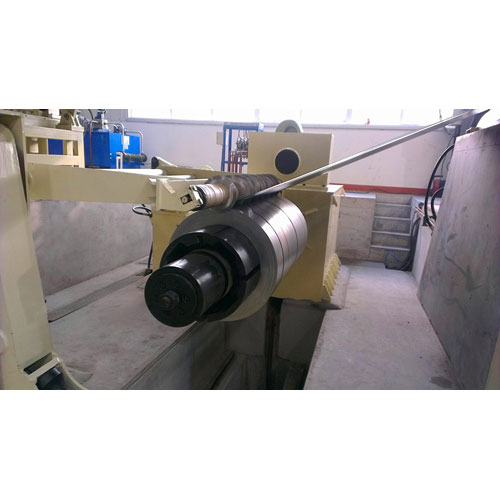

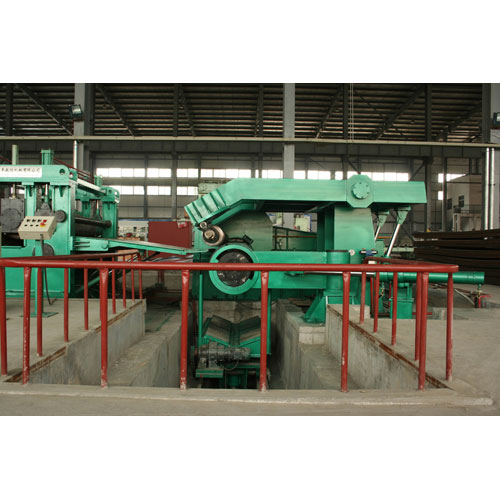

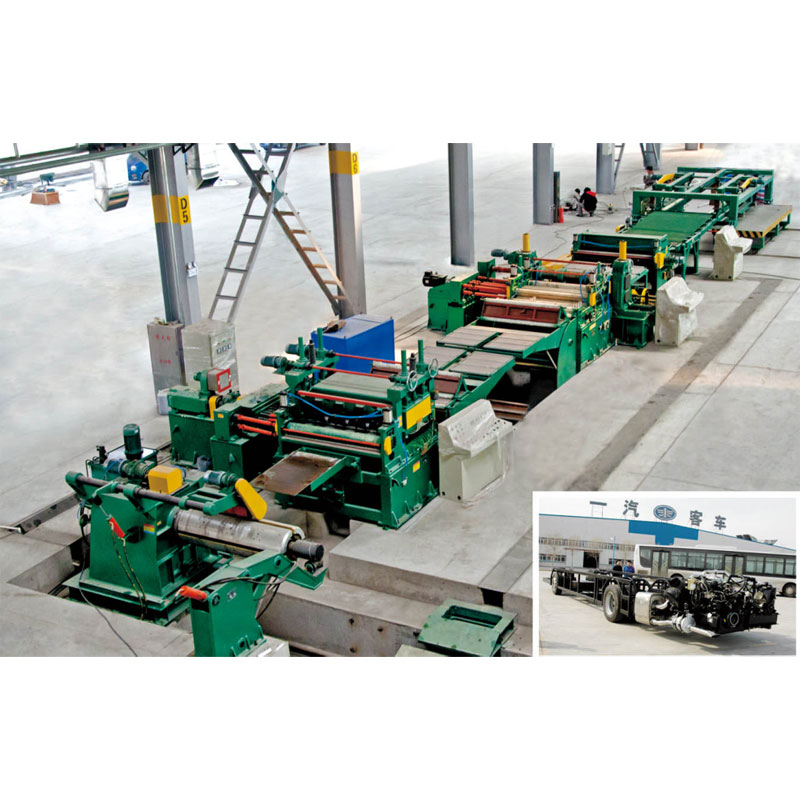

Coil Slitting Machine is a special shearing device to slit metal coils that are required by customers to process wide-band steel coils by unwinding, slitting, and coiling.

1．2 Equipment design service life ≥ 20 years.

Ⅱ. Line technical parameter:

2.1 Main parameters:

2.1.1 Input coil parameter
2.1.2
1.	Material	:	HR material
2.	Thickness	:	0.3~3.0mm
3.	Width	:	800~1600mm
4.	Mechanical character	:	Tensile strength σb≤450MP σs≤260MP
5.	Coil ID	:	Ø508mm-Ø610mm- Ø 760mm
6.	Coil OD	:	Ø800mm ~ Ø2000mm
7.	Weight	:	30t
2.1.3 Finished product parameter:
1.	Thickness	:	Maintain original thickness
2.	Coil ID	:	Ø610mm
3.	Coil OD	:	≤Ø2000mm
4.	Weight	:	MAX:20t
5.	Slitting strips (excluding two scrap strips)	:	Thickness :0.5~1.0mm 20 strips 1.1~3.0 mm 11 strips 3.0~4.0mm 8 strips
6.	Width accuracy	:	Width＞300mm, 0.5~1.5mm ±0.05mm 1.6~3.0mm ±0.10mm
7.	Straightness (bending)	:	Width＞300mm, ≤0.35mm/1000mm (If the two side strips are within 100mm of the mother material, considering as the common production process)
8.	Burr	:	Thickness ≤1.0mm,burr≤0.03mm (Sharp blade, reasonable gap) Thickness ＞1.0mm,burr ≤3% of material(Sharp blade, reasonable gap)
9.	Min strip width	:	35mm
10.	Scrape width range	:	2~25mm(Not less than 1.5 times the thickness)
11.	Max scrape weight	:	≤200kg/coil
12.	Misalignment accuracy	:	±0.5mm
13.	Tower shape tolerance	:	±3.5mm(exclude Inner layer 5~10 laps)
14.	Surface	:	No processing defects
