Laminate film cutting and slitting machine can cutting wrapping of profiled wood, extruded plastics and metal substrates with various papers, foil, PVC orveneer in roll.

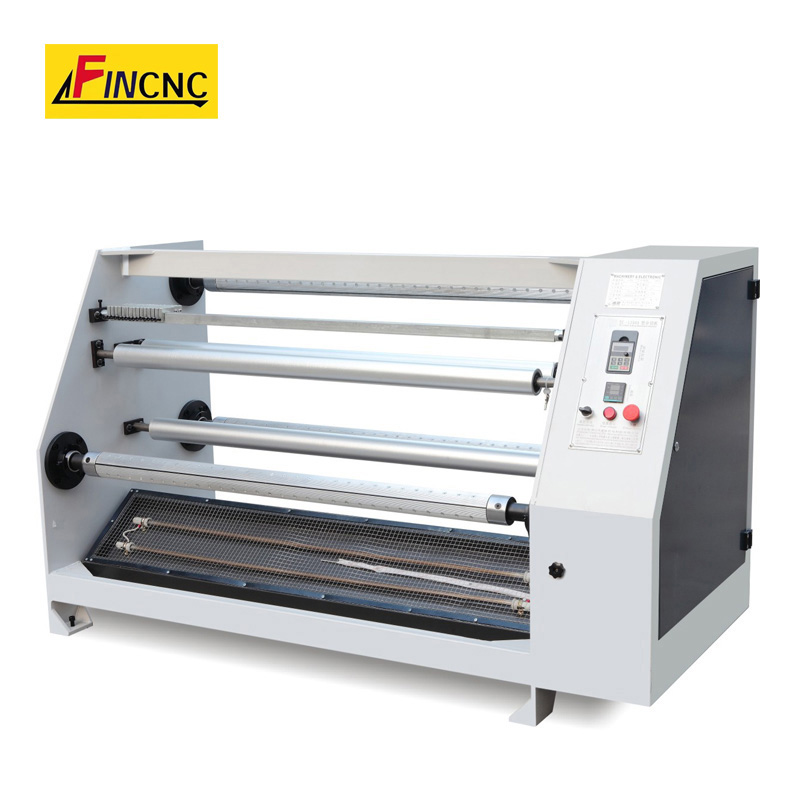

1.Product Introduction of the Laminate film cutting and slitting machine
The Laminate film cutting and slitting machine is designed for PVC edge banding, wrapping films, decorative papers and laminated films and other materials, it works by air expender to unwind and wind roll, which helps the paper or PVC film straightly, and we adopt to Gear drive instead of belt drive to operate easily.
2.Product Parameter (Specification) of the Laminate film cutting and slitting machine
Max. Process width |
1300mm |
Process thickness |
0.1-0.5mm |
Material rolling Speed |
2-50 m/min |
Motor power |
1.5kw |
Machine weight |
800kg |
Maximum diameter of roll cover material |
400mm |
Structure size |
1850x800x1100mm |
Voltage |
380V 50HZ |
Delivery time |
15days after receive the down payment |
3.Product Feature And Application of the Laminate film cutting and slitting machine
1)The Laminate film cutting and slitting machine can cut many different materials .
2)The width can adjust for your request.
3)There standard knife is twelve.

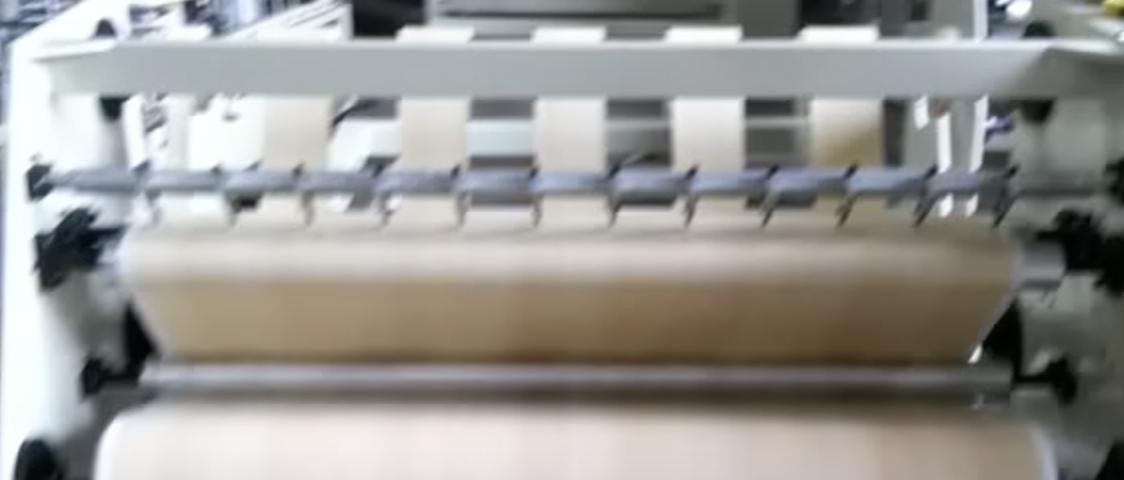

4.Product Details of the Laminate film cutting and slitting machine
1)The Laminate film cutting and slitting machine with interface knife,it so fast and smooth.
2)The machine with film heating can make cutting easy and fast.
5.FAQ
Q1.Warranty
12 months warranty is effective from the date of acceptance of the machine.
Q2. Payment Terms
TT 30% down payment, 70% before shipment.
Q3. Delivery Time
15-30 working days from the receipt of the down payment.
Q4. Technical Support
Every machine is assigned by a specialist. The response is available within troubleshoot and solve problems on line.
Q5.Demo and Testing
In order to built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.
Q6.Door-to-door service
We can offer door-to-door service if you need for payment.
